Welded Wiremesh - wire mesh manufacturers

Performance And Application Scenarios Of Welded Mesh Sheet

WELDED WIREMESH

Product Introduction

Overview

Parameter

Wire material: Available in Stainless Steel and Galvanized Material

Types: Including galvanized welded wire mesh (electro galvanized welded wire mesh, hot-dip galvanized welded wire mesh),welded stainless steel wire mesh and PVC coated welded wire mesh.

According to different process: Electro-galvanized welded wire mesh can be classified to electro-galvanized before welding and electro galvanized after welding. Hot-dip galvanized welded wire mesh can be classified to hot-dip galvanized before welding and hot-dip galvanized after welding.

Characteristic: Steady construction, good corrosion resistance and oxidation resistance, etc.

Application: Welded Iron Wire Mesh serves as guards in buildings and factories, animal enclosure and Iron wire mesh fences in agriculture; Welded Iron wire mesh also serves in horticulture industry as guards for trees and plants.

Welded Wire Mesh

Products:Galvanized / PVC welded wire mesh, Stainless steel welded wire mesh

Material:Carbon steel wire, stainless steel wire

Size:General Specification Or As customer’s Requirement.

HS code:7314310000

Brand Name:FURUI METAL

Place of Origin:Anping, Hebei, China.

Material:black steel wire, galvanized wire and stainless steel wire.

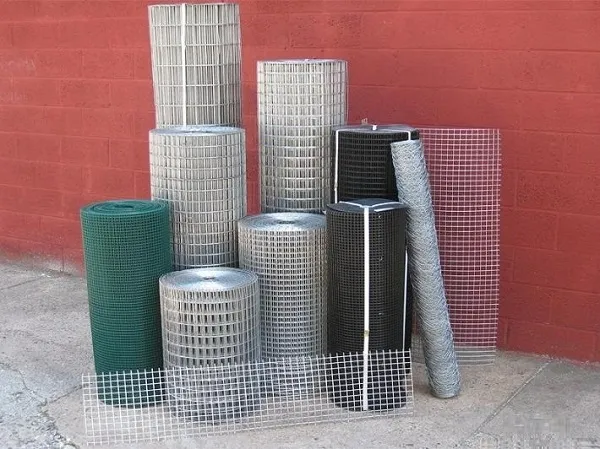

Welded wire mesh is a metal wire mesh that is welded by different metal wire material, which also can be galvanized or PVC coated on its surface. It is available in various sizes and shapes. It features smooth surface, uniform mesh, high stability and great corrosion resistance. This is why it is widely used in agricultural, industrial, transportation, such as building, mines, gardening, machine protection and other decorations.

Common Specifications for welded wire mesh
Mesh Opening (Inch)	Mesh Opening (mm)	Wire Diameter Range (mm)	Width	Length	Finished Products
1/8”x1/8"	3.2x3.2	0.35mm to 0.45mm	500mm to 4000mm	1m to 100m	In Rolls or in Sheets
1/4"x1/4"	6.35x6.35	0.4mm to 0.8mm
3/8”x3/8"	9.52x9.52	0.4mm to 0.8mm
1/2"x1/2"	12.7x12.7	0.5mm to 1.60mm
5/8”x5/8"	15.8x15.8
3/4"x3/4"	19.1x19.1
1"x1"	25.4x25.4	0.6mm to 2.5mm
1"x1/2"	25.4x12.7	0.6mm to 2.5mm
2"x1"	50.8x25.4	1.0mm to 4.0mm
2"x2"	50.8x50.8	1.0mm to 4.0mm
3"x2"	76.2x50.8	2.0mm to 5.0mm
3"x3"	76.2x76.2
4"x2"	101.6x50.8
4"x4"	101.6x101.6
5"x5"	127x127
6"x6"	152.4x152.4

Video

Galvanized Welded Wire Mesh

Characteristic

Galvanized welded wire mesh is the most widely used in the market, including electro galvanizing and hot-dip galvanizing.Electro galvanized (EG) is a cost saving way in galvanizing comparing to hot dipped galvanized(HDG), HDG performs much better in rust-resistance. It is decided by the different zinc volume on the wire surface.

There are fours types of welded wire mesh according to the zinc volume and how to galvanize.

1.Electro galvanized before welding

2.Electro galvanized after welding

3.Hot dipped galvanized before welding

4.Hot dipped galvanized after welding

Due to the burning of the zinc from the galvanized wire surface while welding, only under galvanized after welding process, the intersection parts will be covered with zinc protection, which is not easily to get rusted.

Zinc volume is the main factor that decides the performance of corrosion resistance. The chart below shows the character of quality and cost reference for different galvanization.

Type	Zinc	Price	Performance
Electro-galvanized before welded	10-20g/sqm	Lowest	AAA
Electro-galvanized after welded	20-30g/sqm	Lower	AAAA
Hot dipped galvanized before welded	50-80g/sqm or more	Middle	AAAA
Hot dipped galvanized after welded	Over 200g/sqm	Highest	AAAAA

Send a Message

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

Performance

Product Description

Good Feature

flat smooth and bright surface,uniform mesh, strong welding spot,anti-corrosion, anti-rust, anti-aging,beautiful to look,easy to install and so on. the mesh doesn't come loose even if cut in parts or being exerted force on parts.

Application

Galvanized Welded Wire Mesh has a square or rectangular grid,and it is firmly welded at each joint, which is an extremely widely-use wire mesh product,which is used for a number of application, which is widely used in industries, agriculture, construction, transportation, mining, stadiums, lawns, breeding, and other industries.
