Performance And Application Scenarios Of Barbed Wire
Barbed Wire
Product Introduction
Overview
Thickness
Our barbed wires have a steel wire thickness of 2.00mm/2.00mm or 2.00mm/2.50mm (barb diameter/main wire thickness). 2.00mm barbs are sold in reels of 200 or 250 metres. TE-FENCE barbed wire is manufactured from highly galvanised steel wire through hot dipping. Our stainless steel wires are extremely durable due to their resistance to corrosion.With a barb spacing of 9-10 cm, our barbed wire can withstand a high tensile load. The barbed wire is perfectly designed to be integrated into a high security fencing system (placement of 2 to 6 lines of barbed wire on intermediate L- or Y-shaped posts).
Installation: on L- or Y-shaped brackets, for agricultural space, worksite.High-grade galvanized barbed wire.Optional: stainless steel barbed wire (inox 304)
Thickness of the barb: 2,00mm.Thickness of the main wire: 2,50mm
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire
10# x 12#
7.5-15cm
1.5-3cm
12# x 12#
12# x 14#
14# x 14#
14# x 16#
16# x 16#
16# x 18#
PVC coated barbed wire;PE barbed wire
before coating
after coating
7.5-15cm
1.5-3cm
1.0mm-3.5mm
1.4mm-4.0mm
BWG11#-20#
BWG8#-17#
SWG11#-20#
SWG8#-17#
Barbed Wire In Three Twist Types With A Variety Of Sizes

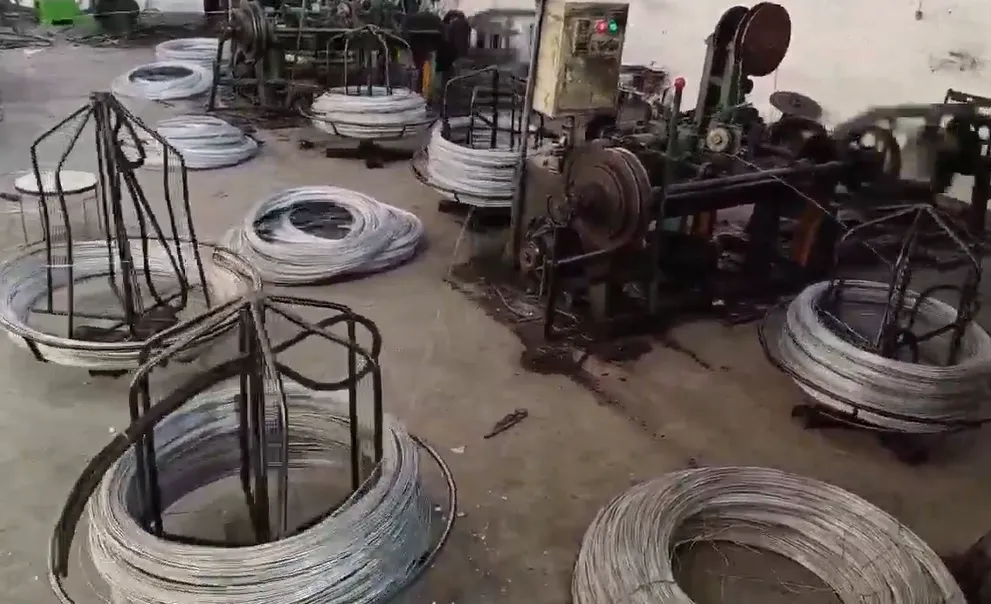

Barbed wire is made with high quality low carbon steel wire with the automatic twist machine. It is commonly used in grass field edges, railway, high way, prison and the privacy fields for separation.
Barbed wire have three common twist types: single twist barbed wire, double twist barbed wire and traditional twist barbed wire.
Barbed wire includes line wire and barbed wire. In general, the wire diameter of line wire is larger than that of barbed wire. The barbed wire twist types depends on the twist type of line wire and barb wire. And the line wire sometime is single wire, sometimes is double wire.
Single Barbed Wire
Single Barbed Wire Is A Kind Of Security Fences With Sharp Edges And High-tensile Wire.
Double barbed wire
Double barbed wire has two line wires twisted together with wire barbs attached. The wire is normally attached to wooden fence posts using a curved nail. This type is much safer than single barbed wire with the high tension.
Note: After galvanizing or plastic coating, the wire gauge is larger.
The length or weight per coil can be as customer need.
Applications: with high tensile, barbed wire is the perfect selection for cattle fencing and for the top wire above a traditional stock fence. It is also suitable for farm fencing, grassland farm. Barbed wire with chain link fence or welded fence can be found in use in railway, airport, high protection areas.
Barbed wire is relatively cheap and moderately effective. The barbs are painful if pushed against, thereby discouraging the horses from pushing against the fence.
Note: the barb is quite sharp and easily the barbs can cause serious injuries. When install the barbed wire fence, you should take the gloves for protection.
